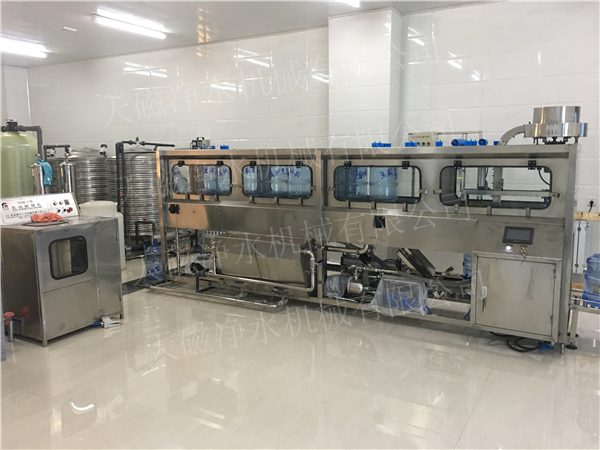

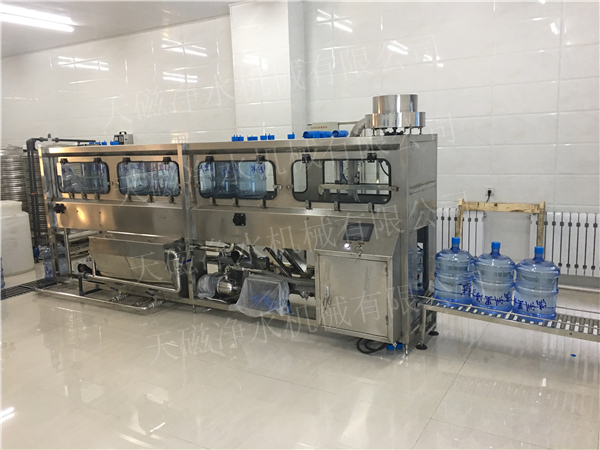

Bottled water filling equipment is a pure water plant or mineral water plant dedicated irrigation 3 gallons, 5 gallons automatic bucket filling equipment, the device is simple, only 1-2 workers to operate, is set disinfection, washing , Cover, gland and sent in one, using three-phase AC 380V power supply, widely used in urban, industrial and mining enterprises and individual units. The device uses a reliable, easy to operate, simple maintenance of microcomputer control system and pneumatic control system, is the bottle washing, filling and capping the whole process in the closed state effectively prevent pure water or mineral water in the filling Secondary pollution that may occur in the process, so that truly aseptic filling, is currently the most ideal pure water, mineral water filling equipment.

Bottled water filling equipment using automatic program control, the work process is as follows:

Wash the bottle

Washing through five stations, the first station using chlorine dioxide (CLO2) dissolved disinfection washing, washing time adjustable, the first station time 12S, the second station 12S, the third station 12S, The fourth station for pure water cleaning, the time can be adjusted according to different needs, the fifth station is to clean the residual water in the barrel clean.

2. Filling:

A clean barrel is transported by the conveying mechanism of the chain and falls on the bucket supporting mechanism. The bucket supporting mechanism will correct the empty bucket, the valve of the filling valve is positive, and the filling is started. The filling time can be adjusted according to the flow of the filling pump.

3. Filling and capping

When the filling is finished, the bucket drive mechanism will be filled with water bucket to cover machine cover cover, cover the cover of the barrel to the gland mechanism, the gland cylinder will cap compression, thus, a washing irrigation The cycle is completed.

This machine is a fully automatic multi-functional combination unit integrating flushing, filling and sealing. It is suitable for washing, filling and sealing of all kinds of non-sparkling drinks, mineral water, pure water, fruit juice, tea drinks, etc. Automatic production. The whole machine has the advantages of unique design, compact structure, beautiful appearance, complete functions, strong adaptability, easy operation and maintenance, continuously adjustable production capacity and the like, and is currently the most advanced non-gas and liquid beverage filling production equipment in China. The machine set flushing, filling, sealing function in one, is a high performance full-action liquid packaging equipment.
